1.Origin: China
2.Certificate: ISO 9001
3.Usage:It is widely used in laboratories, schools, institutes, hospitals and many other places.

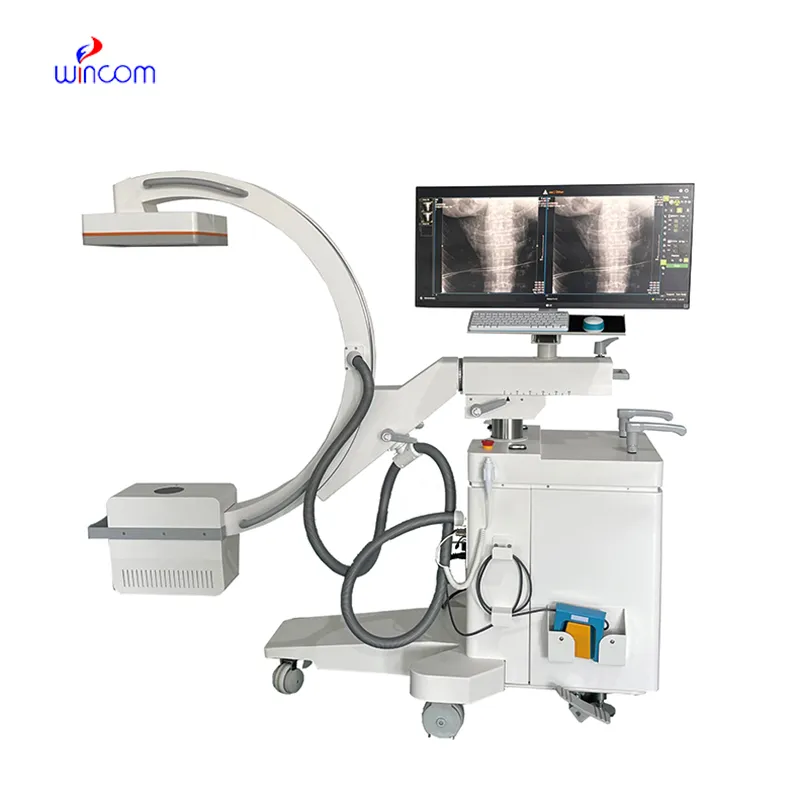

5kW Flat-panel Detector Mobile C-arm X-ray Machine
Art No.	XRY-500C
Output power	5kW
Current of fluoroscopy	0.3-6.3mA
Current of radiography	0.1-100mA
Pulsed mA	20mA
Voltage	40kV-125kV
mAs range	0.2-100mAs
ms range	10-1600ms
Focal Spot value	0.3mm /0.6mm
Anode heat storage	74KHU
Housing Heat Storage Capacity	1200KHU
Tube continuous heat dissipation	600W
Size	21*21cm
Detector Technology	Amorphous Silicon
Scintillator	CsI
Image resolution	2.5lp/mm
Frame rate	MAX 30frames/sec
Active pixels	1024*1024 pixels
A/D conversion	16 bit
Pixel Pitch	205 μm
Faster image capture speed	The image will be displayed on the monitors in 0.8S after exposure
Brand	JPI
Ratios	0.417361111
Density	60l/cm
SID	100cm
